9 Machinery Shed & Farm Workshop Shed Builds To Inspire Yours

Researching ideas for your machinery shed? Looking for inspiration for your farm workshop shed?

Look no further!

Over the past twelve months, we have designed, manufactured and installed more than 150 machinery sheds and farm workshop sheds across Victoria, New South Wales and South Australia.

So, we’ve collated photos of 9 recent projects to share with you!

Farm Workshop Shed

In this article, you will find a wide range of project types such as a classic fully enclosed farm workshop shed, versatile open-front configurations and drive-through storage sheds.

There are also several different design features including double-bay openings, outrigger door systems and the ever-popular cantilevered canopy.

We hope you find this article the perfect starting point for your project planning.

9 Machinery Shed & Workshop Builds To Inspire Yours

First up is an impressive machinery shed build in Warracknabeal VIC.

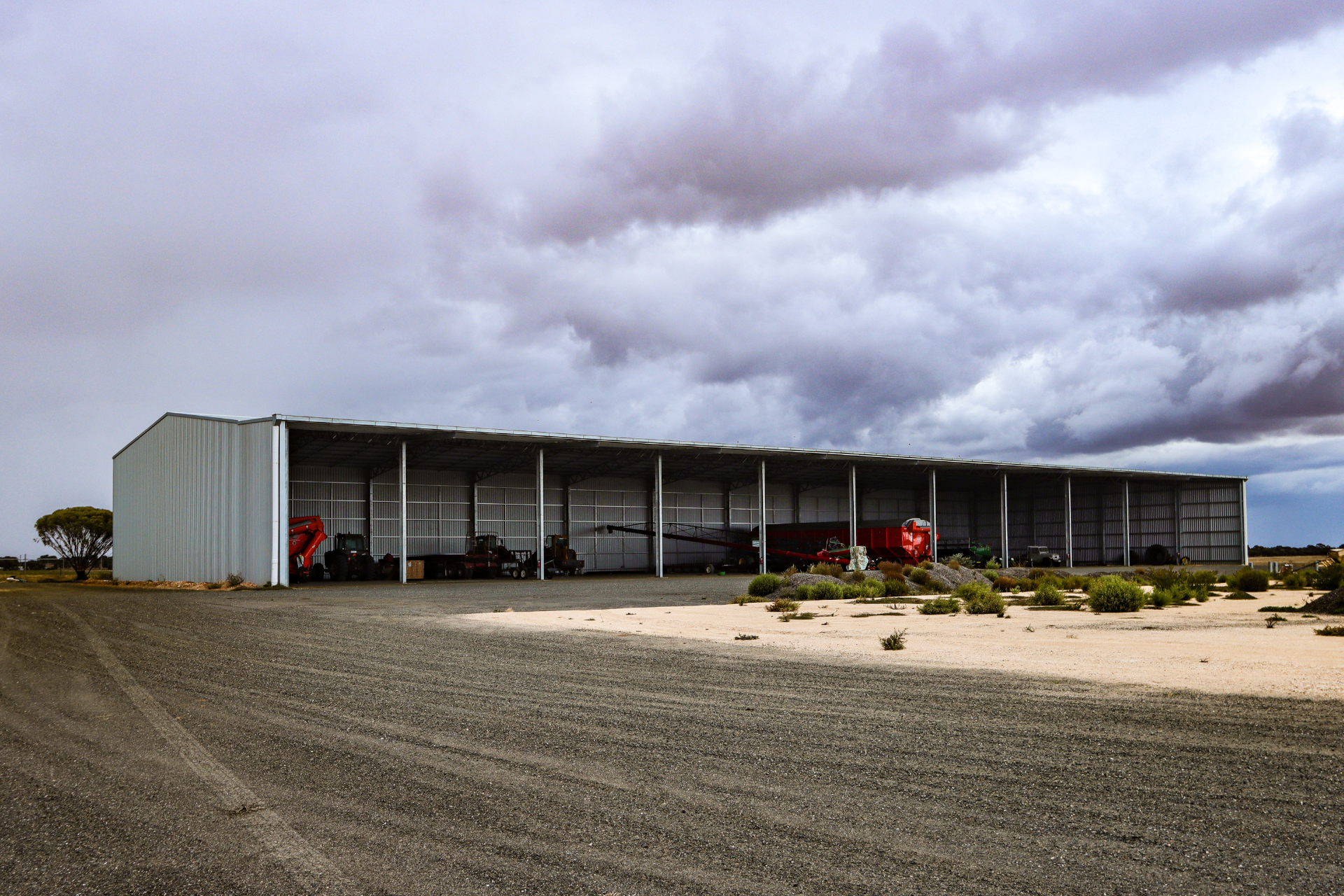

1. 24-Metre Span Open Front Machinery Shed

Size: 85m x 24m x 8m with 6-metre canopy.

Build Date: 2021

Location: Warracknabeal

There are a number of features and details that contribute to making this not only an impressive build but a smart, functional design.

24 Metre Span Open Front Machinery Shed

Firstly, the size consists of a standard 24-metre span which is a cost-effective option and provides adequate length for a semi. This span combined with the 6-metre canopy provides 30-metre-wide coverage if required.

The bay spacings of 8.5 metres are both cost-effective and practical. They provide extra room for moving large pieces of machinery.

A height of 8 metres takes into account the cantilevered canopy and ensures that there is adequate clearance. The height combined with the open-front configuration and details like the bay widths make this shed well suited to hay storage too. So it is a versatile investment!

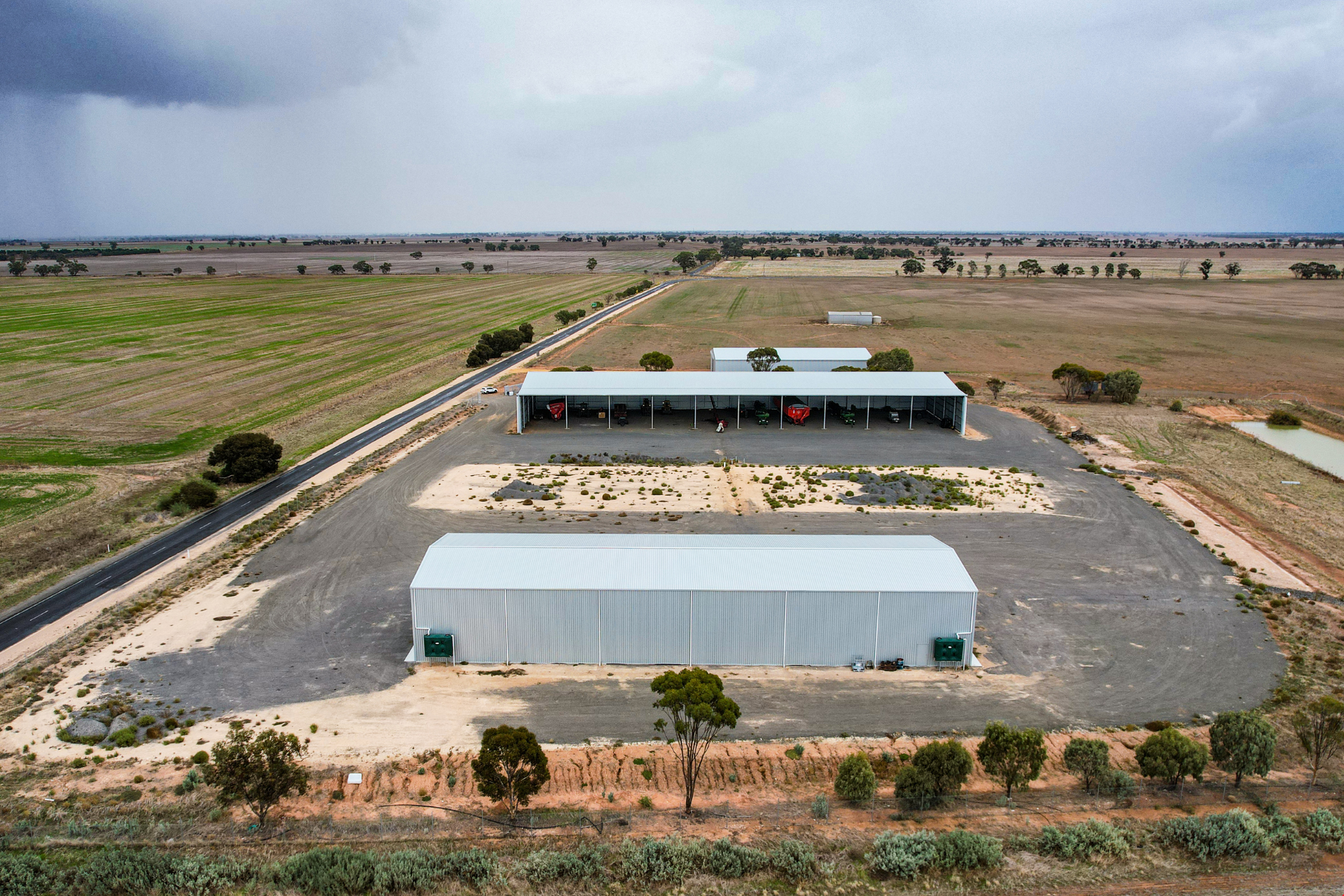

In the gallery of photos below you will also see the 40m x 18m x 7m farm workshop shed which was built alongside this project.

2. 127 Metre Long Farm Workshop Shed

The workshop shed completed for Monk & Son Services is another impressive example, in design and size!

Size: 126m x 27m x 7.5m with 8 metre canopy

Build Date: 2022

Location: Cobrico VIC

Cost To Build A Machinery Workshop Shed - Gallery 5

The size of the workshop is one detail that makes this build impressive, however, it is also a carefully planned design.

The design incorporates several functional design features that can also be a good fit for smaller-scale workshops and maintenance sheds.

Some of these details include the configuration which provides a workshop area and a versatile storage area, the sheltered access and the concrete slab and concrete apron.

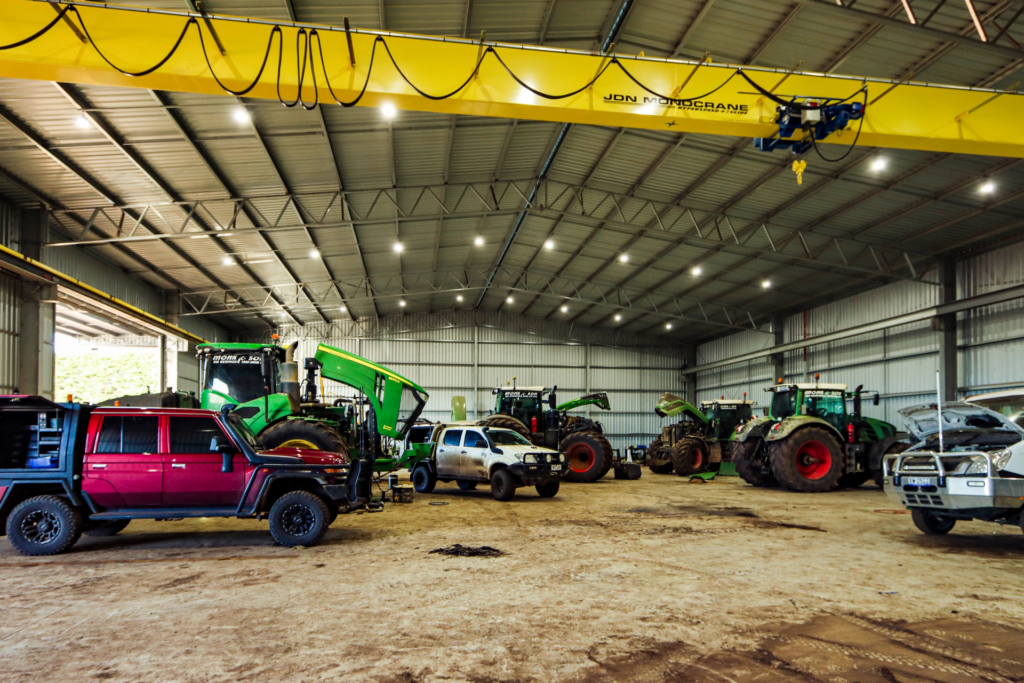

This project also includes a gantry crane which is ideal for a workshop of this size.

Browse the gallery below and check out this article to learn more about the project.

3. Open Gable End Machinery Shed With Skillions

If you are looking for a shed that provides easily accessible shelter for both long and wide machinery, this design delivers.

Size: 45m x 24m x 7.5m with 15 metre skillions

Build Date: 2022

Location: Bellata NSW

Open gable ends and double bay openings on the long side provide easy access to the shed from both sides – for both long and wide machinery.

An open gable end or drive-through configuration is the most cost-effective way to achieve a wide opening. It is also a cost-effective option for storing long machinery.

4. 18 Metre Span Farm Machinery Shed

A slightly smaller scale shed in comparison to some of the other projects on this list, this shed effectively uses the classic fully enclosed configuration – with a few added features!

Size: 40m x 18m x 6.75m

Build Date: 2022

Location: Blackheath VIC

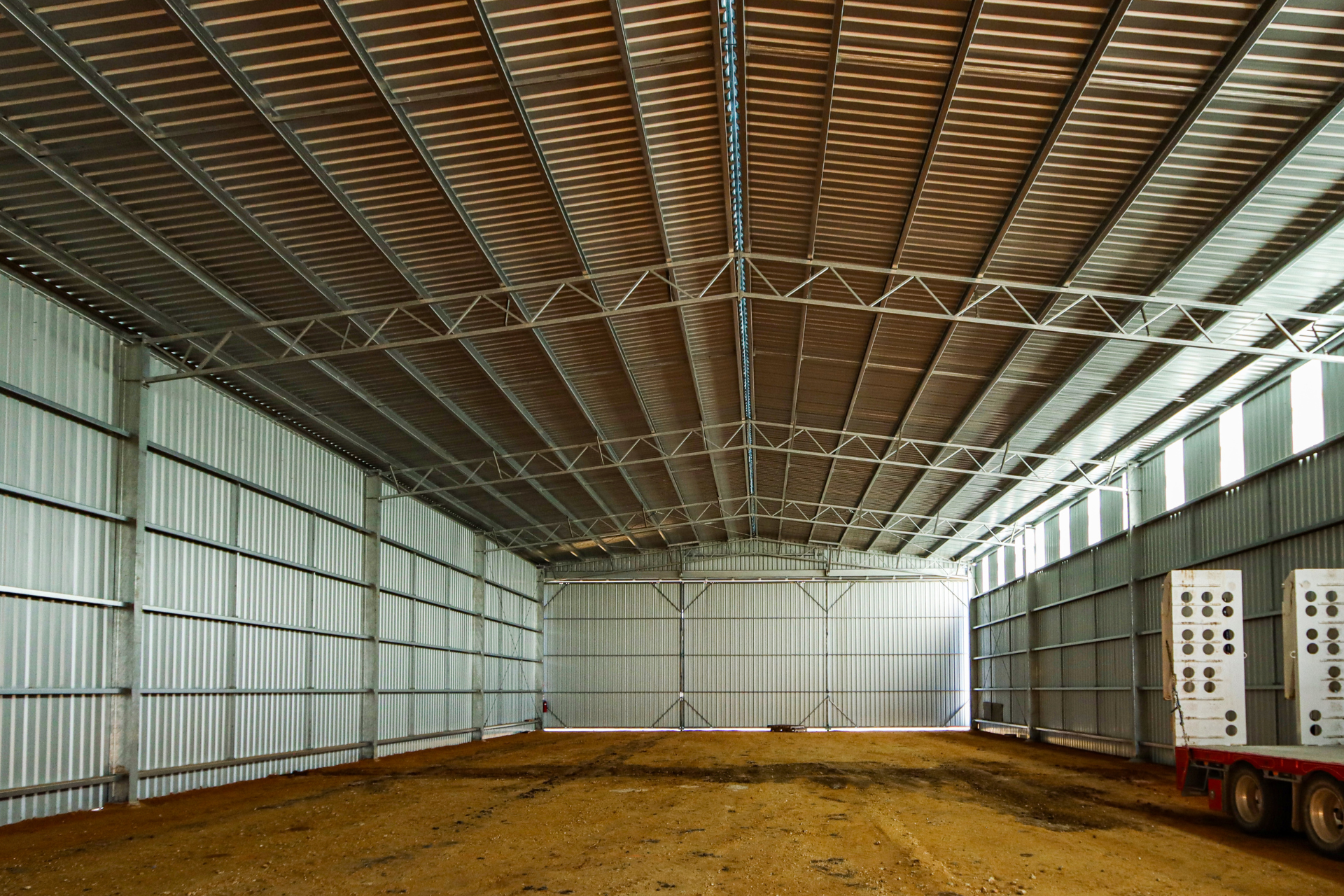

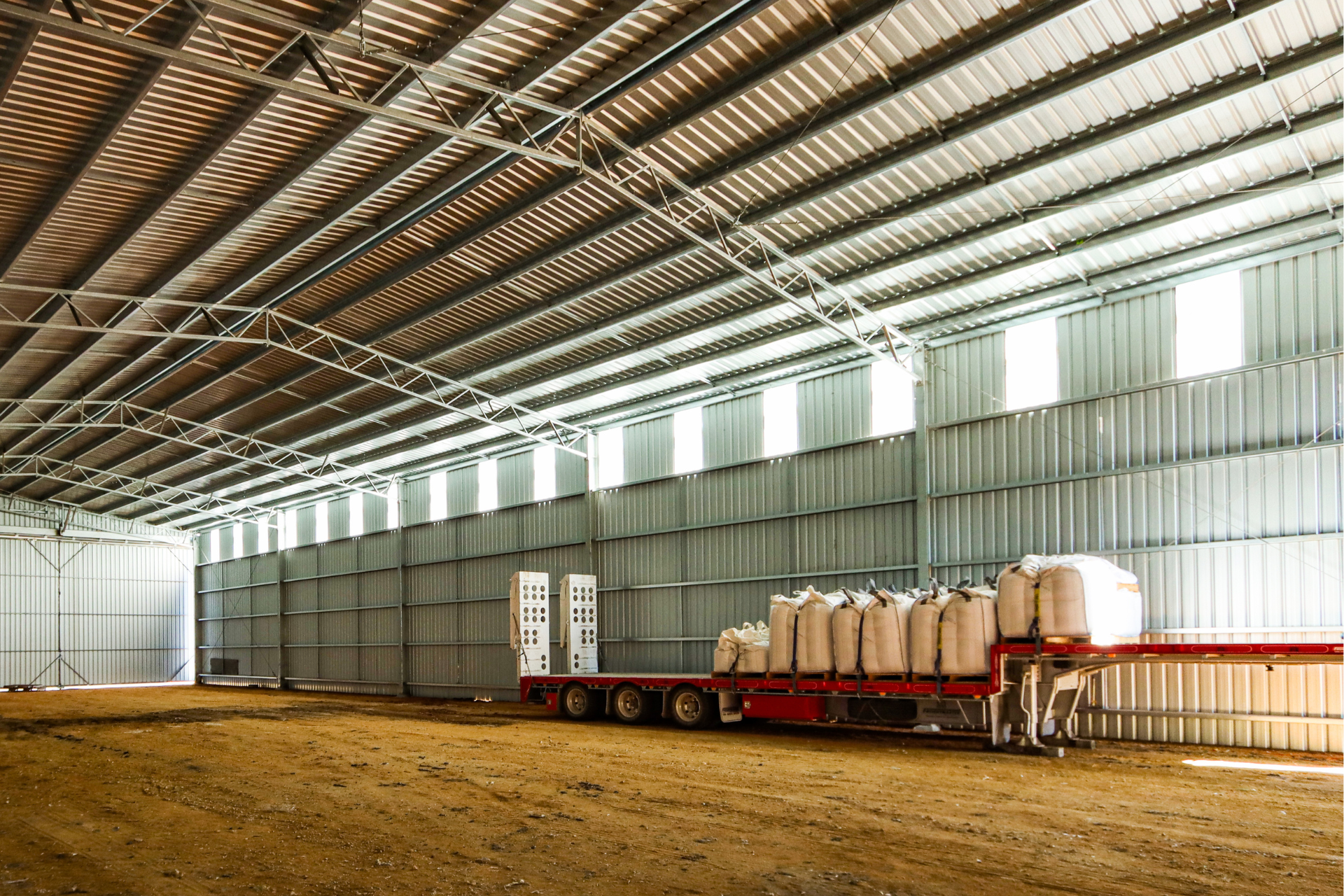

Two notable features of this project are the sliding door outrigger and the skylights. The outrigger system is used to provide a wide opening with the sliding doors pushed out of the way. The skylights mean the available natural light can be taken full advantage of.

Check out the project in the photos below!

5. 21 Metre Span Open Front Machinery Shed

"It was very easy … the shed turned up; we unloaded it. The next thing you knew, it was up."
Col Gilby
Col Gilby
Jubilee Park

Size: 36m x 21m x 6m

Build Date: 2023

Location: Kotupna VIC

Watch the video below to learn all about Col’s machinery shed project!

A 36m x 21m x 6m machinery shed at Kotupna VIC

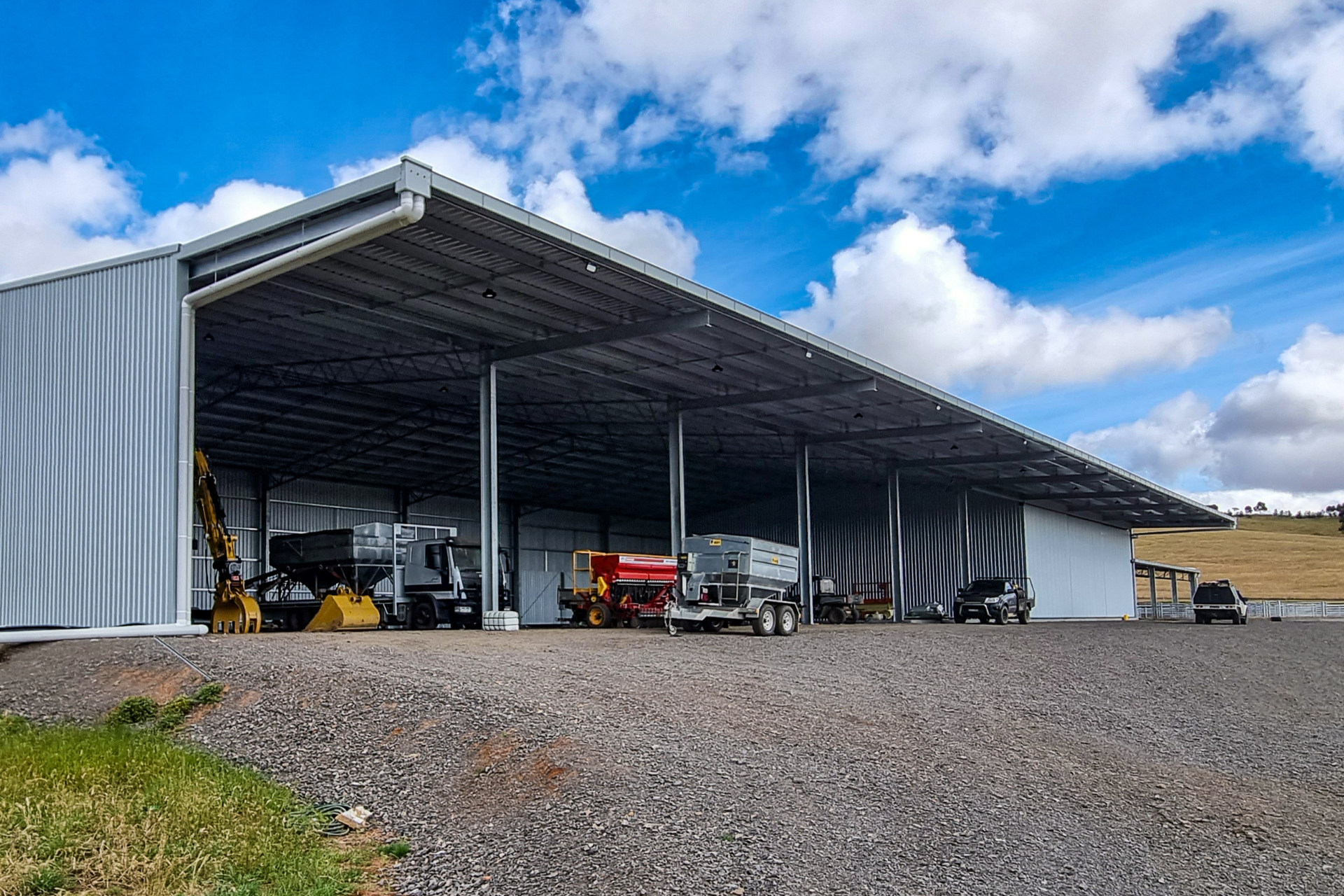

6. 21 Metre Span Multipurpose Shed

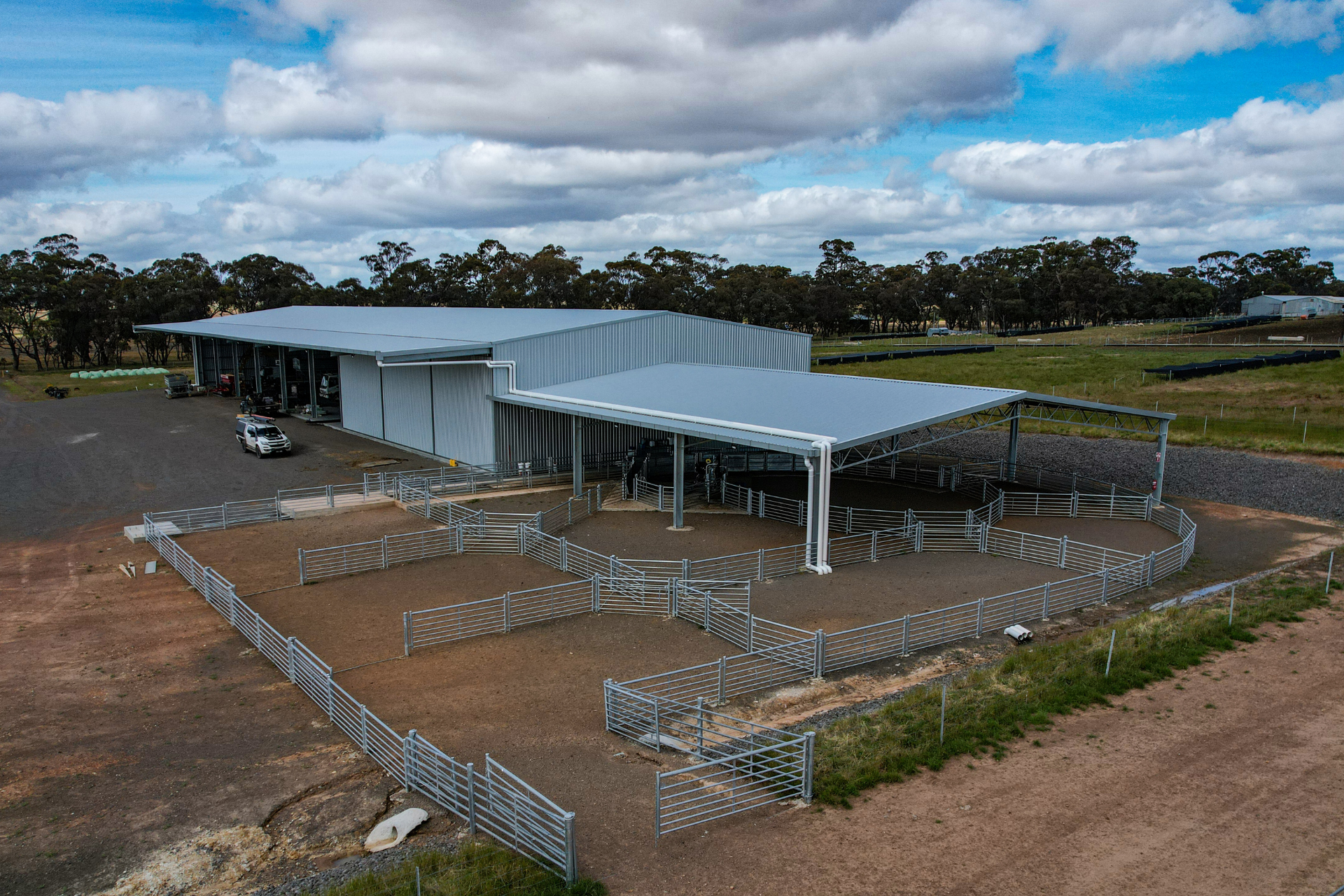

This project is an excellent example of a well-planned multipurpose farm shed design! The design incorporates a versatile machinery storage and maintenance area and covered yards.

Remember, before embarking on a multi-use shed project it is always a good idea to check that your insurance policy will cover things like co-storing.

Size: 96m x 21m x 6.75m with 6 metre canopy

Location: Wareek VIC

Build Date: 2021

7. 30 Metre Span Machinery Shed

This open-front machinery shed design ticks all the boxes!

Size: 56m x 30m x 6.75m with 6 metre canopy

Build Date: 2022

Location: Rich Avon West VIC

Key features of this build include:

  • A cantilevered canopy to provide additional weather protection (and storage area if required)
  • girder truss has been used to create a 16-metre-wide double-bay opening
  • Sliding doors on the back wall of the shed make it easier to access machinery. This helps avoid having equipment stuck at the back of the shed and needing to move large machinery to access it.

8. 21 Metre Span Machinery Shed & Farm Workshop

This machinery shed and farm workshop shed project uses one of the most popular configurations available – an open-front configuration with enclosed bays.

Size: 56m x 21m x 6m

Build Date: 2022

Location: Keith SA

An open-front storage shed with one or more bays enclosed is a great way to incorporate a workshop area and create a versatile shed design.

This project takes it a step further with extra wide bay widths. The 56-metre length is made up of a 12-metre enclosed bay and four open 11-metre bays.

Another highlight of this project is the well-prepared site and access points. Watch the video below to learn about preparing the ideal shed site.

9. 27 Metre Span Machinery & Farm Workshop Shed

Size: 64m x 27m x 7m with a 9 metre canopy

Build Date: 2021

Location: Stavely VIC

Lastly, we have included a 27-metre span shed which uses the tried and tested combination of a canopy, girder truss and the fail-safe open-front configuration with an enclosed bay.

The photos speak for themselves, check them out in the gallery below.

So, that’s nine examples of our recent machinery shed and farm workshop builds! We hope this list has helped to inspire your project planning and designs.
