Can I build a shed near a powerline?
If you are looking to build a shed near a powerline – or under a powerline – it is a good idea to do your research.
This is because there are several restrictions and requirements that you need to be aware. These may affect how your shed is built, increase project costs or determine whether you shed can built on your chosen site.
This article provides a general overview of whether or not you can build a shed near a powerline.
Read on!
Or if you would rather watch our video on this topic, click the play button on the video below.
Can I Build A Shed Near A Powerline?
First and foremost, whether you are allowed to build near or even under the powerline usually depends on two things:
1. The type of powerline
2. Your powerline provider.
For example, the restrictions for a distribution overhead powerline will be different to the restrictions for a transmission overhead powerline.
This is why we recommend you contact your local provider. They will be able to confirm the exact measurements and any requirements that need to be met. This includes calculating the potential ‘sag and sway’ over the powerlines such as the potential movement of the wire on a hot, windy day.
No Go Zones When Building Near A Powerline
How close can a powerline be to my shed? What is a no go zone?
Generally speaking, the closest a powerline can be to a shed is within three metres. Any closer than this is regarded as a ‘No Go Zone’

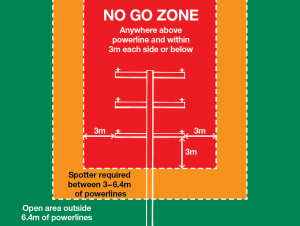

The graphic below is a good visual explainer of No Go Zones. You can also learn more about these, here.
Building Near A Powerline?
There are several points to be aware of, including these three:
1
A ‘Spotter’ For Safe Distances
If the building works are within 3 metres to 6.4 metres of the powerline, a ‘spotter’ from your power provider must be on site. This is to ensure that safe distances are kept from the powerlines during construction.
2
Confirm The Height With Your Power Provider
Although this is not usually endorsed by power providers, a shed can be built below a powerline.
In order for this to happen, a representative from your power provider must come out to the site to confirm the height of the wires.
3
Maintain 3.7 Metre Clearance
With a shed, most power providers require at least 3.7 metres clearance between the highest part of the shed, and the powerlines at maximum sag.
As we mentioned earlier, this will depend on the type of powerline.
That’s a wrap on farm sheds and powerlines. We hope this article has helped answer whether you can build a shed near a powerline or not.
Please remember, this advice is general only and we recommend that you speak to your power provider before starting a project. Our building consultants are also available to discuss your project and provide project specific advice. Call 1800 687 888.
