With a well-planned layout, extra height and a full length concrete apron, this 2000 tonne segregated fertiliser shed delivers safe storage and efficient handling.
Over the past few years, fertiliser sheds have gone from a smart idea to essential infrastructure for many cropping enterprises.
The trend gained momentum during the COVID pandemic when volatile prices and unreliable deliveries exposed the risks of just-in-time supply.
More recently, poor quality fertiliser and silo failures have further highlighted the importance of safe and reliable storage and reinforced that fertiliser sheds are the recommended storage option. So, the trend continues into 2025.
Safety aside, building dedicated fertiliser sheds is proving to be a smart move for cropping operations, saving time, saving money and offering far greater flexibility than silos.
The recently completed 2000 tonne segregated fertiliser shed in the Riverina region of New South Wales is a prime example of this.
Read on to learn about the project: why the design works, a handy price guide and key learnings you can apply to your project planning. For example, weighing up a temporary L-walls versus a permanently segregated fertiliser shed.
Project Overview
Size: 40m (L) x 24m (W) x 9.5m (H)
Configuration: Fully enclosed concrete panel shed with access from the long side
Capacity: approx. 2000 Tonnes (3 segregated areas)
Location: Myall Park NSW
You can discover the latest Action sheds built across NSW, here – NSW Farm Sheds Brochure (PDF Download)
Build Date: 2024
5 Reasons Why This Segregated Fertiliser Shed Design Works
1
Smart Segregated Configuration
A fully enclosed configuration is always a good starting point for a fertiliser shed. This is simply because it provides the best possible weather protection, helping to keep moisture out of the shed.
The shed also features side bay access. This configuration works well for sheds with multiple segregated bays as it is practical and space-efficient, and allows the bays to be easily and independently loaded or unloaded, reducing the risk of products mixing.
2
Well-Planned Access
Taking the time to plan access to the site and the shed can pay dividends when it comes to safety and efficiency.
Several details ensure this project provides safe and efficient access.

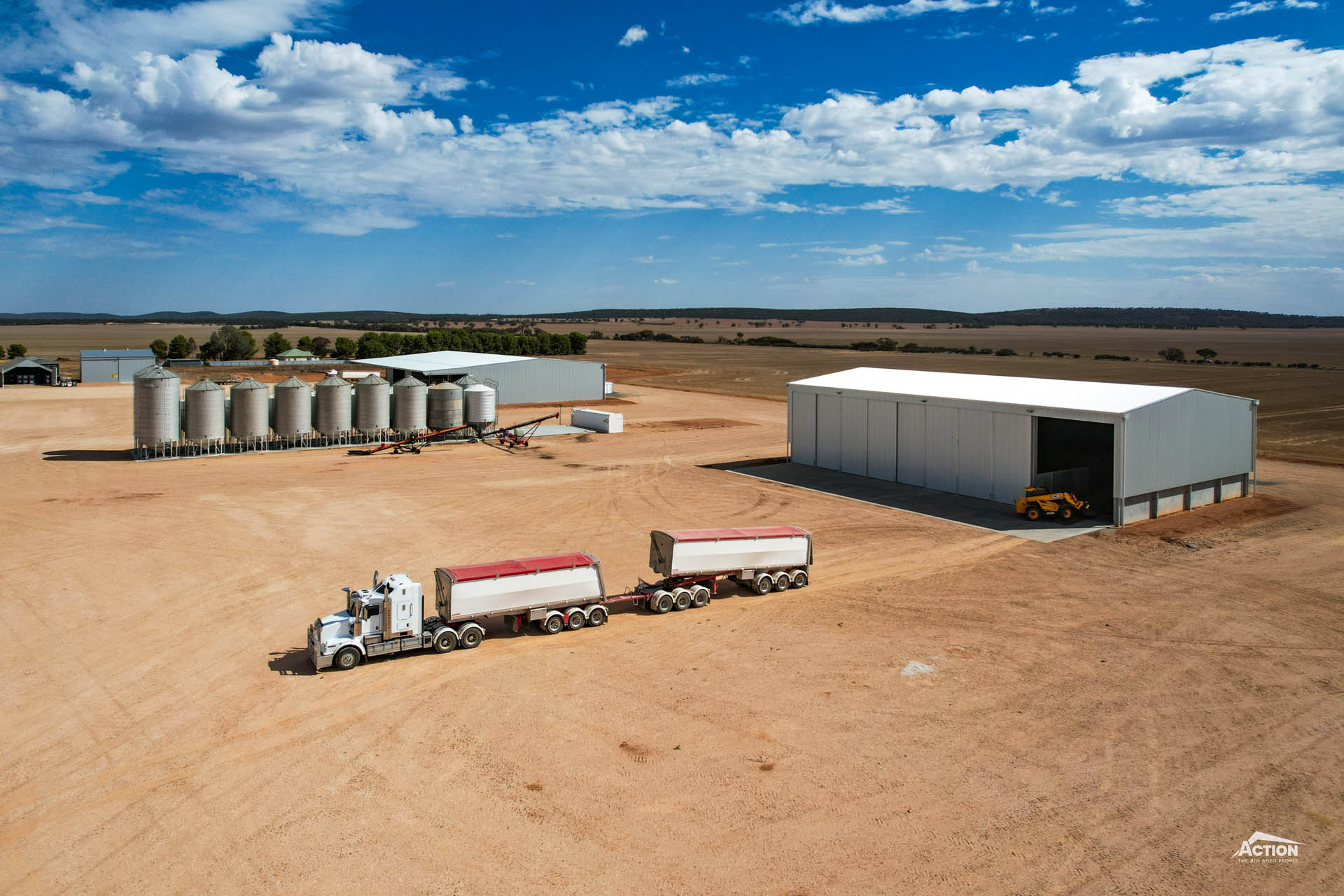

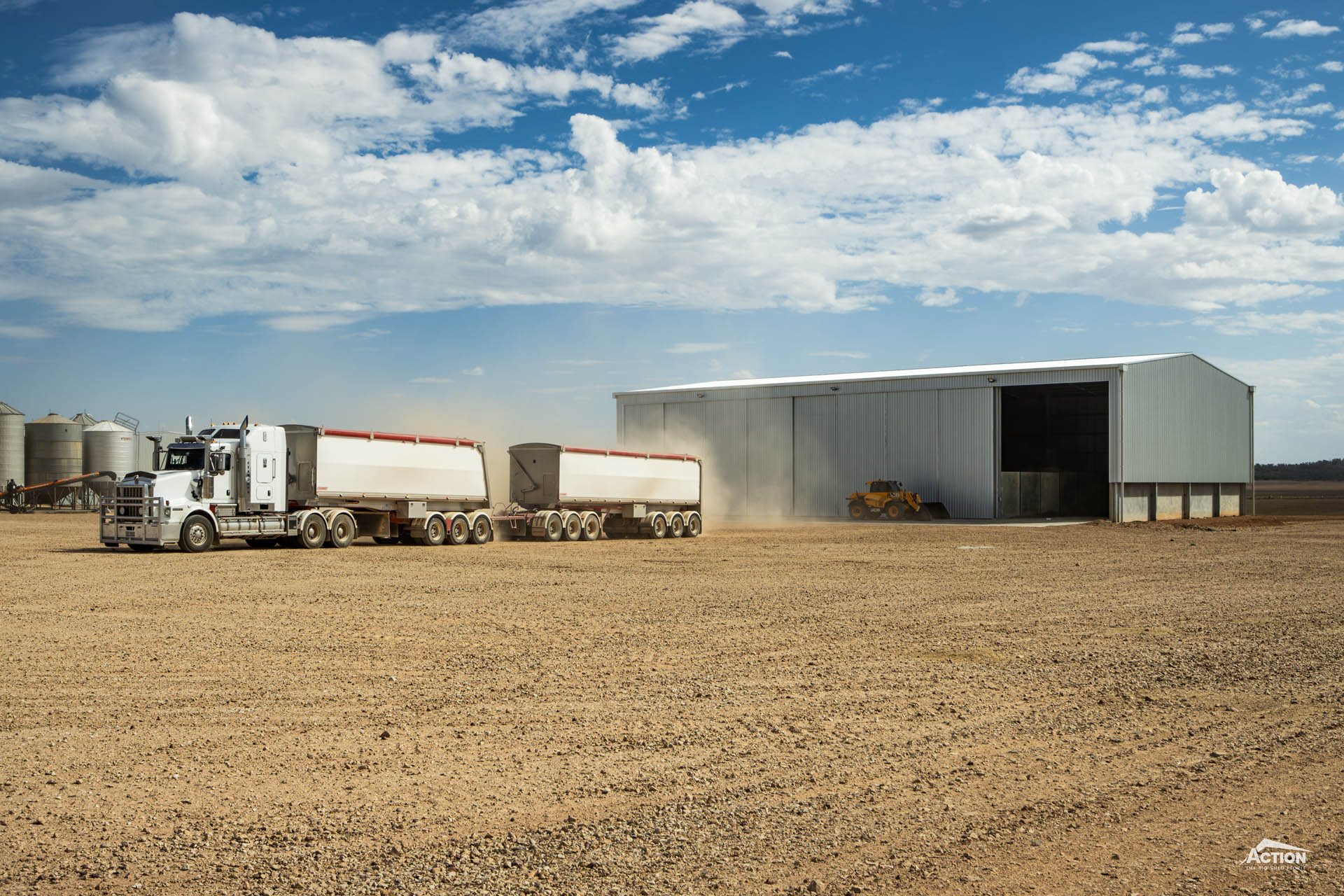

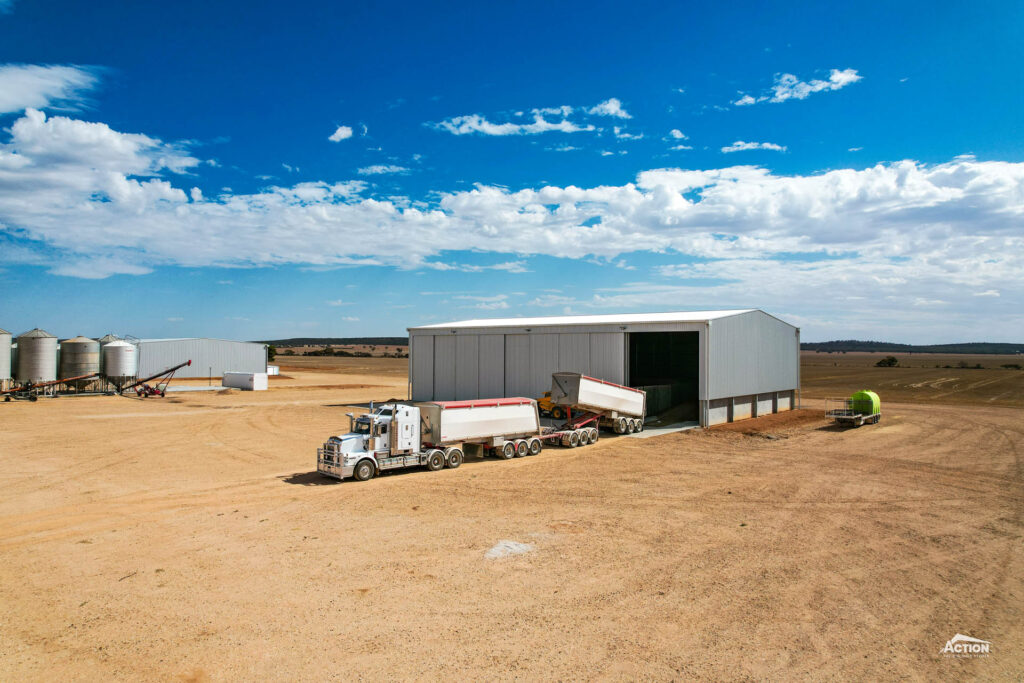

Firstly, the shed has been constructed on a clear and level site, located away from other storage infrastructure and with room for turning circles.
These details are all important considerations, particularly for high-traffic sheds and sites.
For the shed itself, clearance height is arguably the most important detail to get right. This is because it is difficult to increase the height once the shed has been installed.
The best height for a fertiliser shed is largely determined by how the shed is loaded and unloaded.

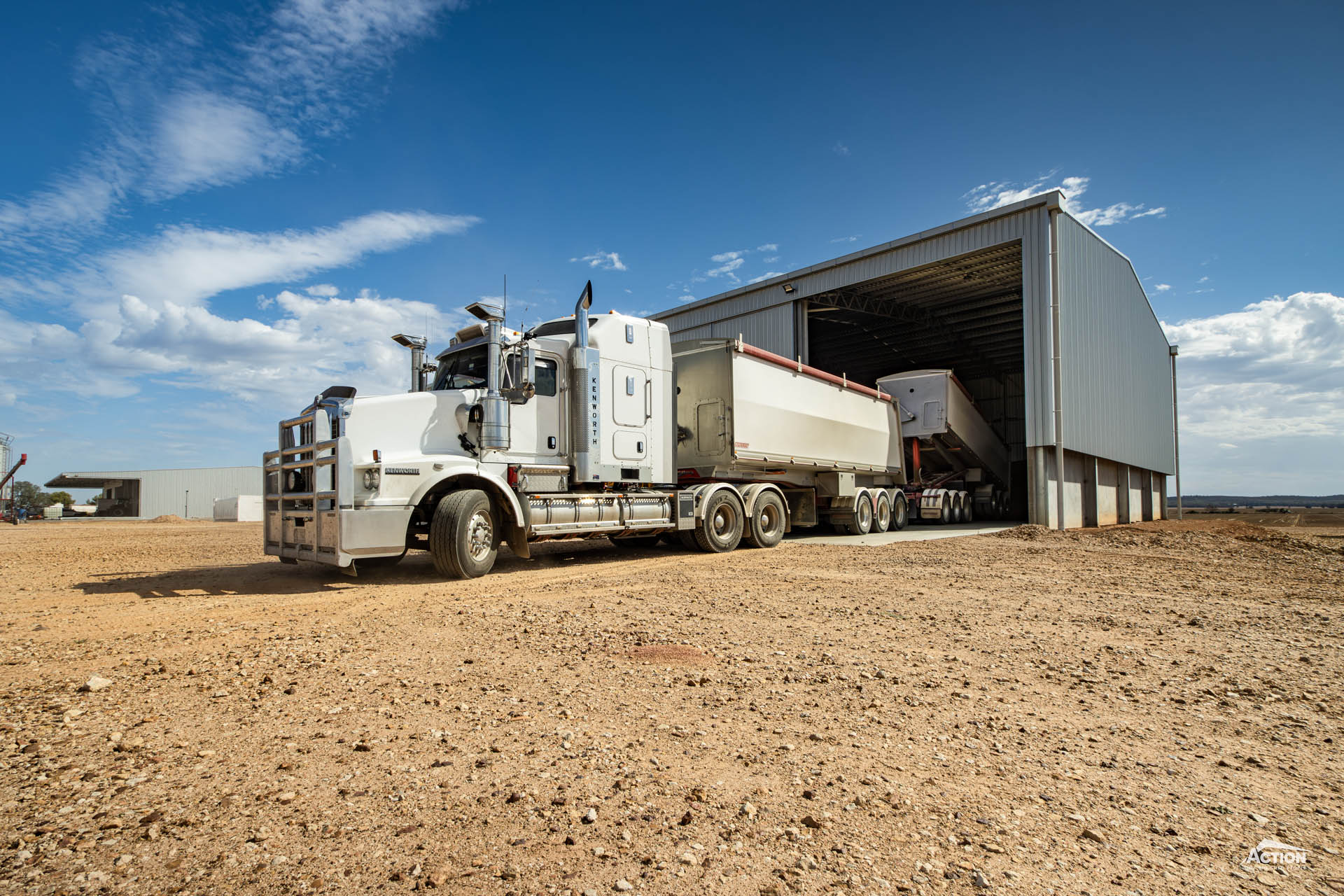

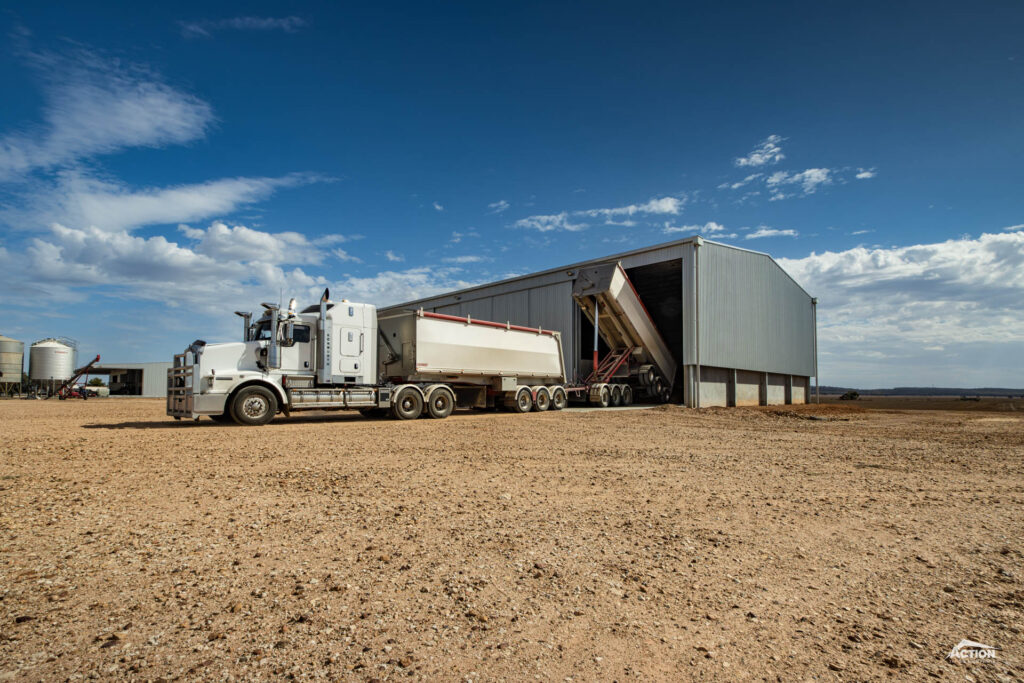

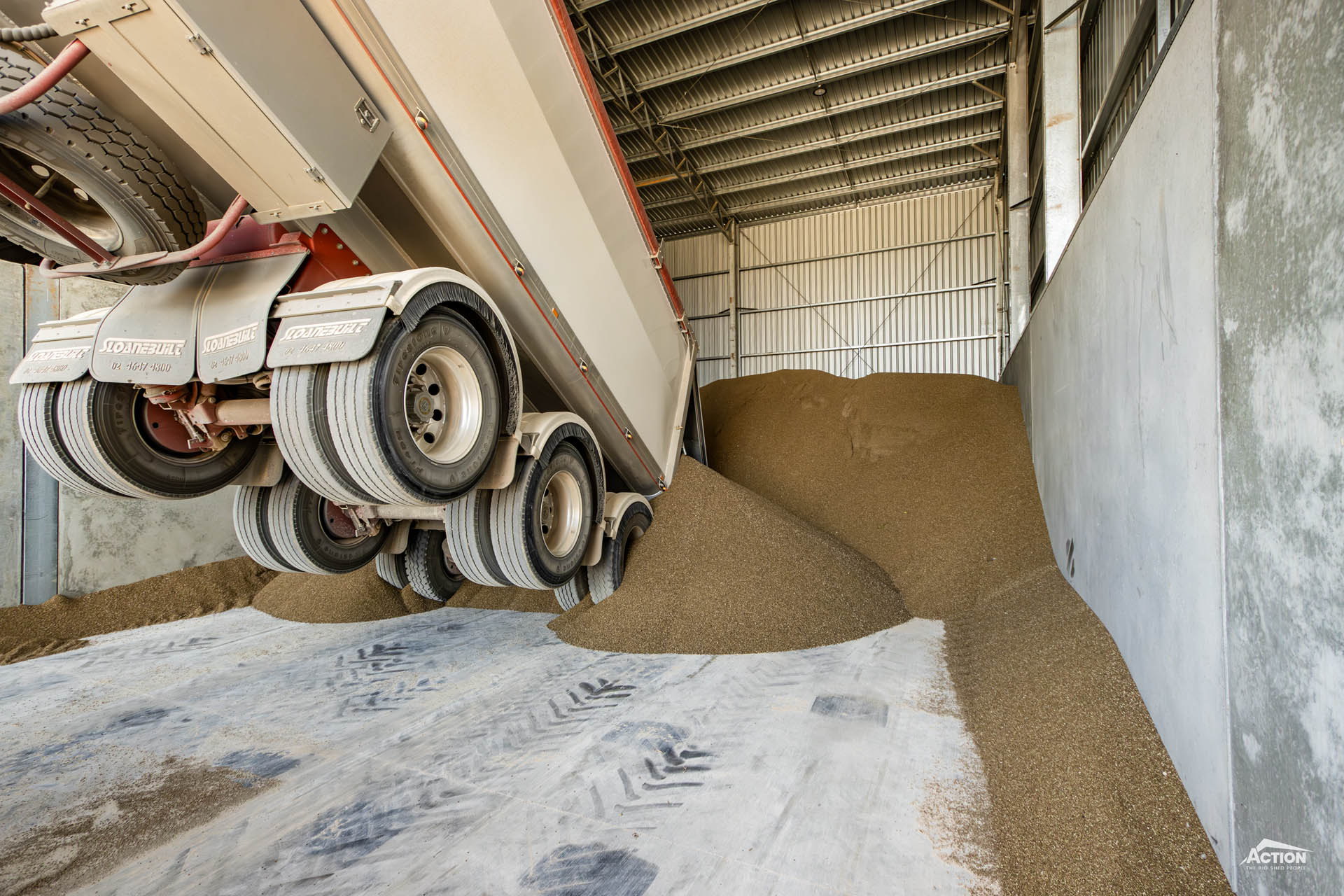

This was the case for the segregated fertiliser shed at Myall Park, with a 9.5 metre eave height allowing a truck to tip inside the bays.
The bays themselves are the standard 8 metres wide, and girder trusses have been used to create 16 metre double-bay spacings. These help make loading and unloading more streamlined and help prevent any machinery damage.
Again, this is very valuable in high-traffic sheds at busy times of the year, like cropping!
It is worth noting that a girder truss is not the most cost-effective way to achieve wide access. Generally, accessing the shed from the gable end would be more cost-effective.

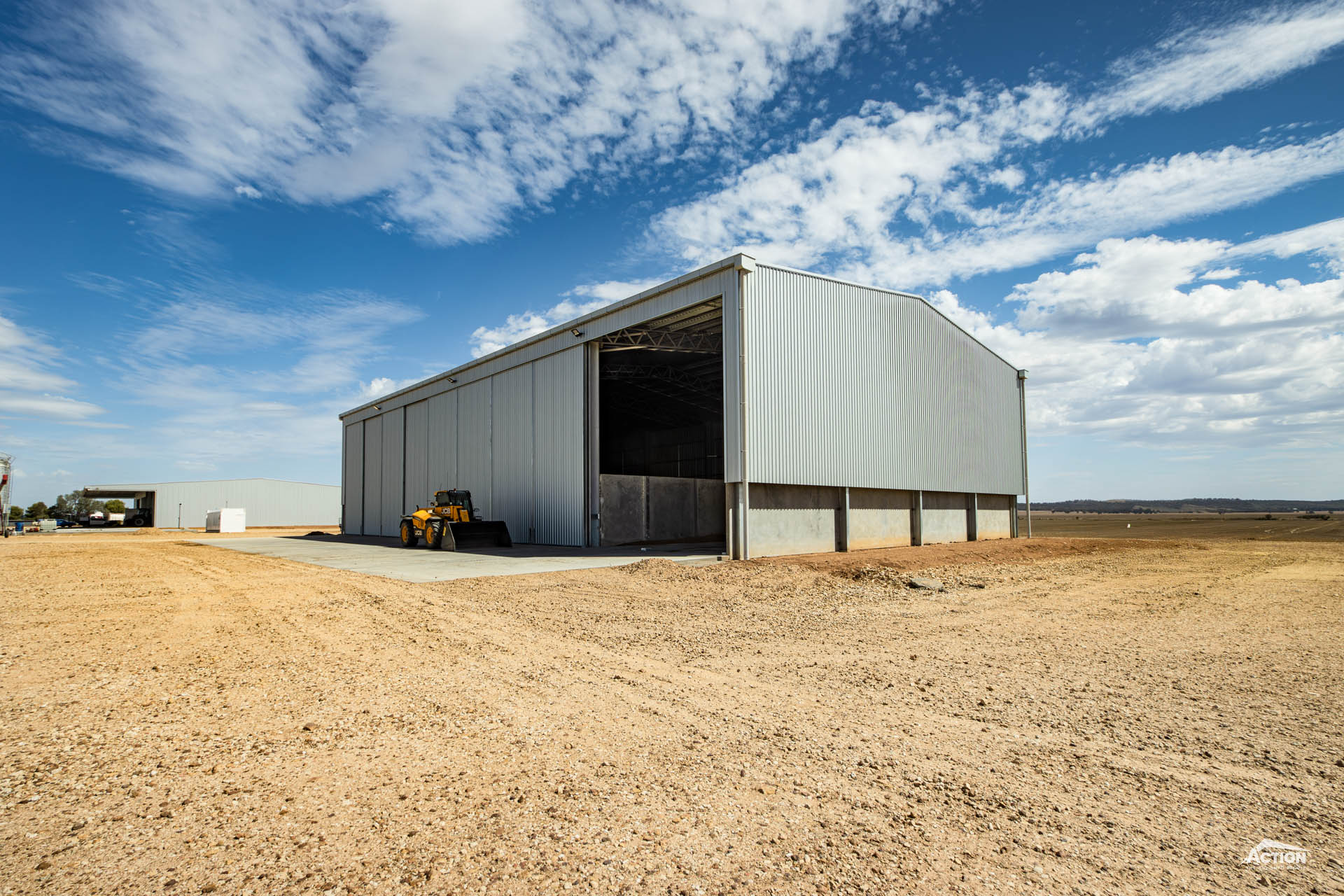

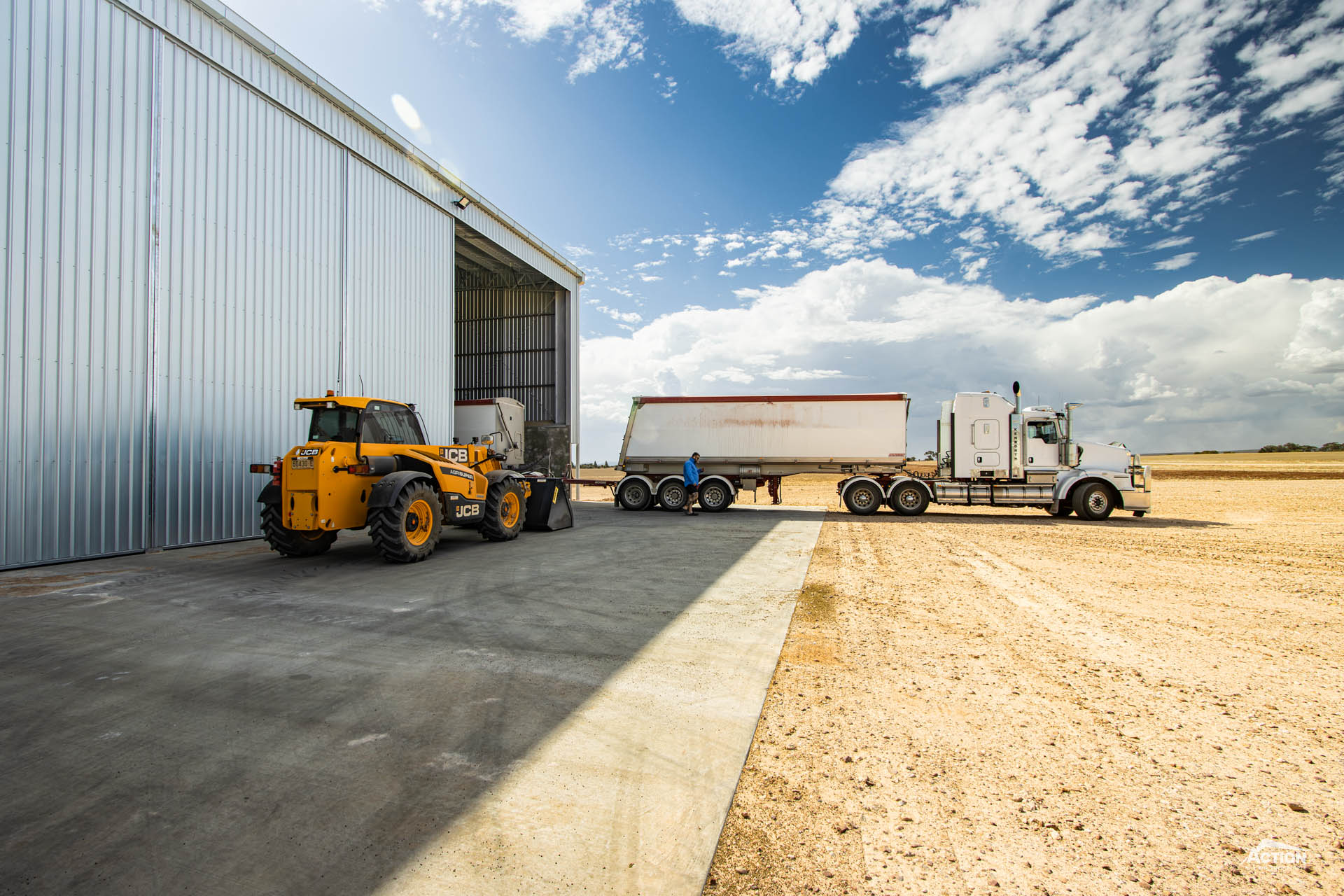

Finally, the concrete apron the full length of the shed is an excellent addition. This provides easy machinery access when loading and unloading (even in wet weather) and makes it easier to keep the site clean and reduce wastage.
3
Standard 24 Metre Span
It is very hard to go wrong with a standard span!
Choosing a standard span size is the best way to create a cost-effective and functional shed design. You can learn why here – What Are The Standard Spans For Farm Sheds?
The 24 metre span used on this project is the most popular size available, working well for hay sheds, machinery sheds – and fertiliser sheds!
4
Segregation For Multiple Products

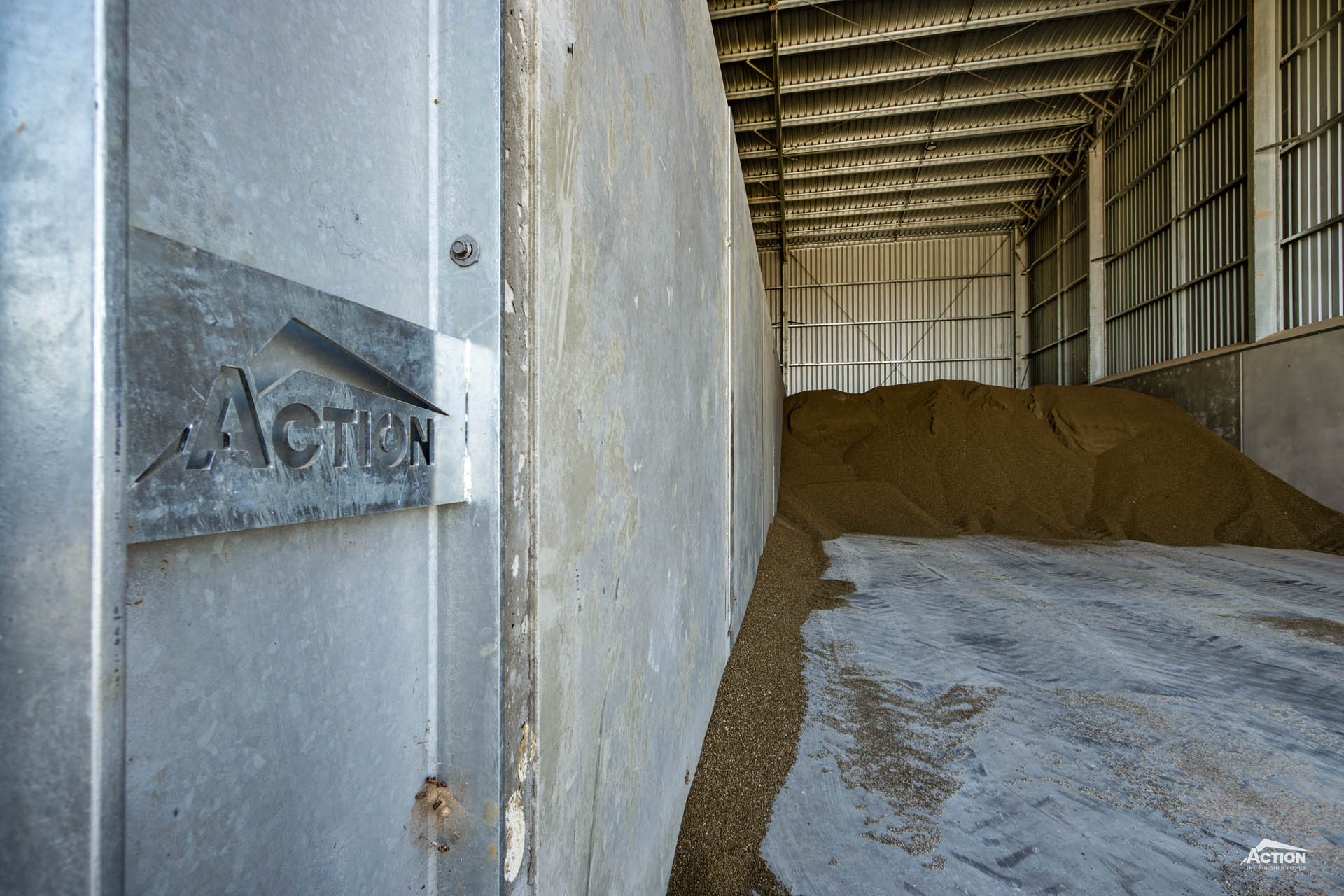

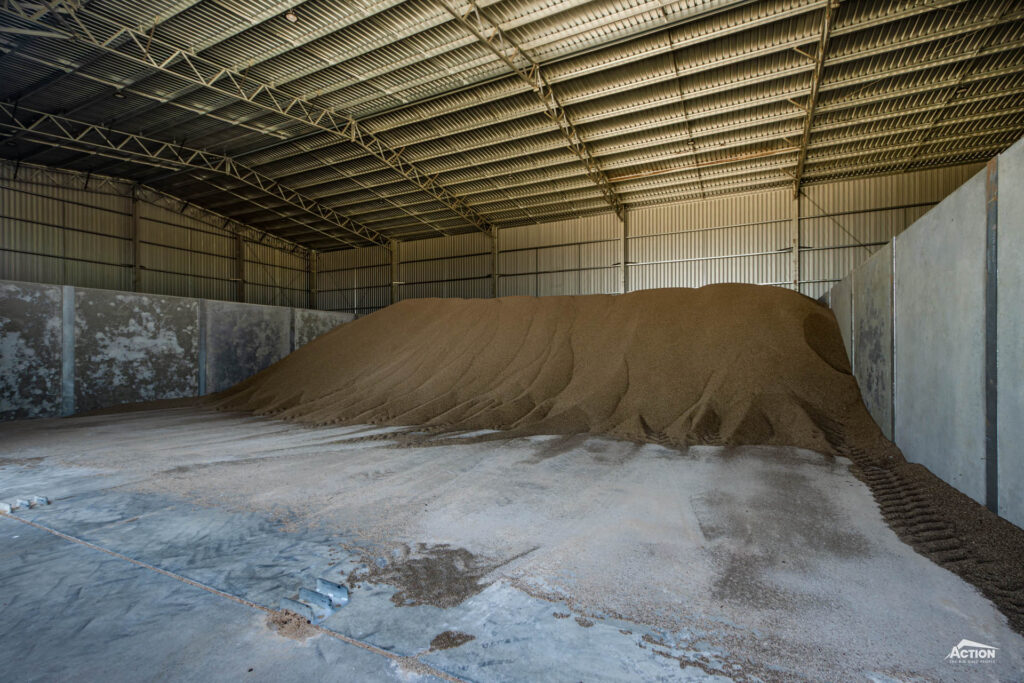

This segregated fertiliser shed consists of two 800-tonne storage areas and one 400-tonne area, providing an overall storage capacity of around 2,000 tonnes.
This provides one central point for fertiliser storage, helping to streamline deliveries and making it easier to manage supply.
Although reducing the overall capacity of the shed, permanent segregation helps maintain strict separation between the different products.
Permanent segregation, rather than L-walls, often works well in dedicated fertiliser sheds for large cropping enterprises.
However, it is important to have a clear understanding of how your fertiliser usage may evolve over the years before committing to this design.
For example, one bulk storage area with L-walls may provide you with more flexibility and a better return on investment.
5
The One Percenters
Footy coaches love one-percenters, and we do too!
Sometimes, the smallest details can make the biggest difference.
Case in point?
Action fertiliser sheds, like this one, feature angled flashing from the concrete panels to the walls.
This provides an effective barrier if the shed is overfilled and helps stop birds from getting inside the shed.
So, that’s an overview of 5 key details that make this segregated fertiliser shed design work!
Planning a similar project? Putting together your budget and curious about project costs?
Read on for a handy price guide.
Project Price Guide
A similar segregated fertiliser shed project in 2025 would cost approx. $580,000 – $750,000 including GST, delivery and installation.
Please note that this price range includes concrete panels and the slab but is only an approximate guide. It is intended only as a budgeting tool and does not take the place of a formal quote. The price for your fertiliser shed project will depend on details like the location and how you choose to customise your shed design.
For different fertiliser shed design ideas and pricing, download the Standard Fertiliser Shed Size & Price Guide (PDF Download) or REQUEST A QUOTE for accurate project pricing.
Want to view the Myall Park project in more detail? Check out the gallery below.
Project Gallery
That’s a wrap!
This 2000 tonne fertiliser shed is a smart example of safe, efficient and segregated storage.
There is incredible value in storing your fertiliser on-farm, whether it is a dedicated, segregated fertiliser shed or bulk storage area with L-walls. It is always better to be looking at your fertiliser than looking for it! Having fertiliser on-hand saves money ahead of cropping, saves time at cropping – and allows you to capitalise on optimum growing conditions when they arise.
